T5 High Quality Home use UV germicidal lamp tube from HUBEI JUCRO ElECTRIC

Name: T5 High Quality Home use UV germicidal lamp tube from HUBEI JUCRO ElECTRIC
Brand: JUCRO
Price: 1.7 USD
Rating: 4.2 (92 reviews)

Group	UV Sterilizing tube
Price	US $1.7 / piece
Min. Order	1 piece
Terms of Payment	all
Update Time	2020-05-13

Contact Now

Description

APPLICATION

1. Eliminate viruses, bacteria and other microorganisms.

2. Industrial water disinfection equipment, such disinfection treatment of food and beverage industries.

3. Small municipal sewage treatment system.

4. Residential drinking water treatment.

5. Air purification treatment system.

TECHNICAL PARAMETERS

Diameter tube	Power （ W ）	Lamp holder type	Lamp voltage （ V ）	Current （ A ）	Ultraviolet intensity （ uw/cm²）	UV wavelength （ nm ）		Length(L) (mm)
Diameter tube	Power （ W ）	Lamp holder type	Lamp voltage （ V ）	Current （ A ）	Ultraviolet intensity （ uw/cm²）	ozone	No ozone	Length(L) (mm)
T5	4	G5	29	170	10	185/253.7	253.7	135
	6	G5	42	160	16	185/253.7	253.7	212
	8	G5	56	160	21	185/253.7	253.7	288
	10	G5	46	230	25	185/253.7	253.7	331
	20	G13	80	360	85	185/253.7	253.7	589
	30	G13	125	380	120	185/253.7	253.7	894
	40	G13	170	425	170	185/253.7	253.7	1199

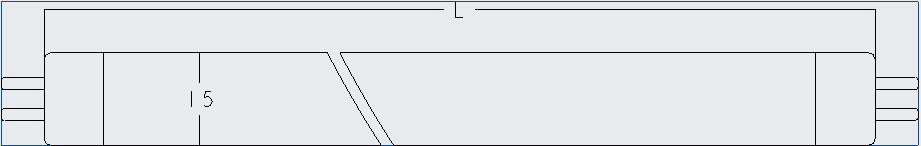

DIMENSION

FEATURES

1. Ultraviolet germicidal lamps can be divided into: ozone (wave peak at 185/253.7nm), no ozone (wave peak at 254nm).

2. Small diameter.

3 .The lamp is made of natural quartz glass tube, which can emit ultraviolet rays of 185nm and 253.7nm. The

ultraviolet rays of 185nm react with oxygen in the air to produce ozone.

4. The lamp holder is resistant to high temperature and ultraviolet radiation.

5. The high-power lamp is the best choice to reduce the system size and maintain the UV output. According to the actual needs, customize the solution should be chosen.

PAKAGE INFORMATION
